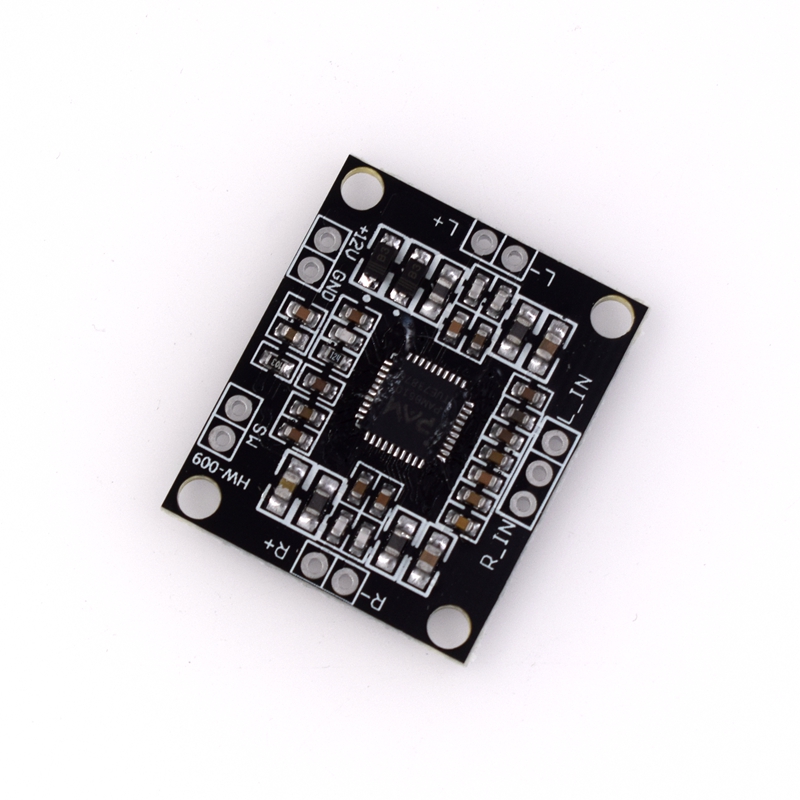

PAM8610 Digital Amplifier Board 215W Two Channel Stereo Class D Technical parameters: Supply voltage DC 7V-15V Output power10w + 10w (8 load) Efficiency90% Shutdown Current:4uA Quiescent current20mAS
| Supply voltage | DC 7V-15V |
| Output power | 10w + 10w (8 load) |
| Efficiency | 90% |
| Shutdown Current: | 4uA |
| Quiescent current | 20mA |
| SNR | 86% |
| Total harmonic distortion | 5W / 1KHz / 8 ---- 0.1% |
| Frequency range | 20Hz-20KHz |
| Input impedance | 15K |
| Output Impedance | 4-8 |
| Amplifier board size | 30mm * 25mm * 2.5mm |
How to use:
1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for 12v, 3A power supply filter better.
3. 4-8 inch stereo speakers recommended.
4. Do not short-circuit the audio output to each other or shorted to ground.
5. Carefully check before electricity, ensure wiring is correct before electricity.
