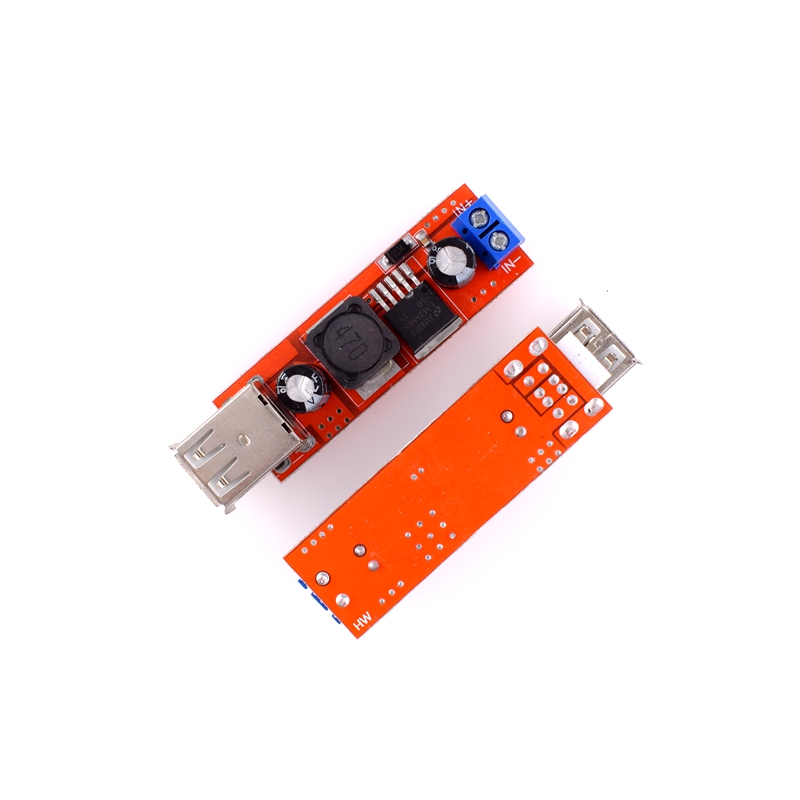

Double USB CAR charger module step down from 9V / 12V / 24V / 36V to 5V DC 3A

Double USB CAR charger module step down from 9V / 12V / 24V / 36V to 5V DC 3A

Dual USB output 9V / 12V / 24V / 36V to 5V Car Charger Switch 5V DC-DC Power Supply Module Model/Name5V DC-DC Power Supply Module input voltage 6V-40V output voltage 5V Output current 3A (maximum) c

Model： Double USB CAR charger module step down from 9V / 12V / 24V / 36V to 5V DC 3A

Online Inquiry

Dual USB output 9V / 12V / 24V / 36V to 5V Car Charger Switch 5V DC-DC Power Supply Module

Model/Name

5V DC-DC Power Supply Module

input voltage

6V-40V

output voltage

5V

Output current

3A (maximum)

conversion efficiency

92% (highest)

Output ripple

<30mV

switching frequency

150KHZ

working temperature

-45℃~ +85℃

Size

59mm * 21mm * 17mm

(length * width * height)
