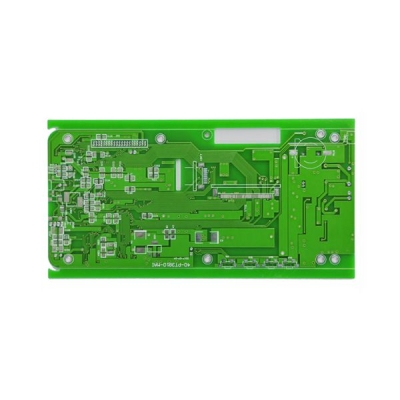

电力监测仪PCB线路板

电力监测仪PCB线路板

     电力监测仪PCB线路板，包括有外壳和电路板，所述外壳的前部有显示屏，指示灯和按键，所述按键共有四个在显示屏的下方，所述壳体的后部有插拨式端子；所述电路板包括有采样模块、测量模块、存储模块、电能计量模块、电量监测模块、电网监测模块、日期与时间模块及通信接口，所述通信接口为RS485通信接口。

PCB Circuit Board of Electric Power Monitor

The PCB circuit board of the electric power monitor includes a housing and a circuit board. The front part of the housing has a display screen, an indicator lamp and a button. There are four buttons under the display screen. The rear part of the housing has a plug-in terminal. The circuit board includes a sampling module, a measurement module, a storage module, an electric energy metering module, and a plug-in terminal. Electricity monitoring module, power network monitoring module, date and time module and communication interface, the communication interface is RS485 communication interface.

电力监测仪PCB线路板

     电力监测仪PCB线路板，包括有外壳和电路板，所述外壳的前部有显示屏，指示灯和按键，所述按键共有四个在显示屏的下方，所述壳体的后部有插拨式端子；所述电路板包括有采样模块、测量模块、存储模块、电能计量模块、电量监测模块、电网监测模块、日期与时间模块及通信接口，所述通信接口为RS485通信接口。

PCB Circuit Board of Electric Power Monitor

The PCB circuit board of the electric power monitor includes a housing and a circuit board. The front part of the housing has a display screen, an indicator lamp and a button. There are four buttons under the display screen. The rear part of the housing has a plug-in terminal. The circuit board includes a sampling module, a measurement module, a storage module, an electric energy metering module, and a plug-in terminal. Electricity monitoring module, power network monitoring module, date and time module and communication interface, the communication interface is RS485 communication interface.
